Manage multiple Azure Contexts using PowerShell

PowerShell for Azure Databricks — Data Thirst

In my day-to-day work I have to deal with several customers and Azure Subscriptions, and for this reason it sometimes becomes exhausting to jump from one Azure Context to another, even when I want to switch to my personal Azure tenant to run some tests.

Today’s article will be short, but simple and useful. After all, I believe it can help in the organization and agility of those who need to manage several subscriptions like me.

Okay, let’s get straight to the point.

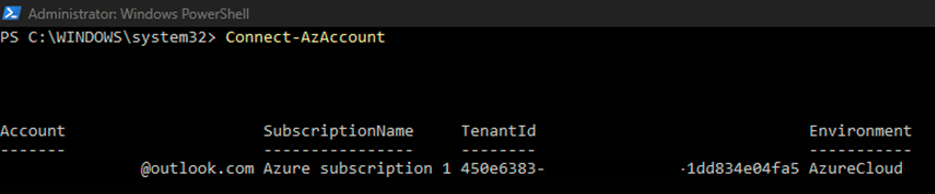

Log in with your Azure account;


As you can see in the image above, once I authenticated an Azure context comes up as the default context.

Important -What is an Azure Context? Microsoft says “Azure contexts are PowerShell objects representing your active subscription to run commands against, and the authentication information needed to connect to an Azure cloud.”

Okay, we already noticed that when I authenticate with the user above, an Azure context is already loaded and so the next command will show which Azure contexts this same user has access to.


So let’s suppose I want to change which default subscription I want loaded once I authenticate to PowerShell.


Once you’ve changed the default context, you can check along the way: “C:\Users\Username\.Azure\AzureRmContext.json”


You can also rename all other subscriptions to a simpler name, and then you can select them more simply.

Rename-AzContext -SourceName ‘Visual Studio Professional (xxxxxxxx-xxxx-xxxxxx-xxxx-xxxxxxxxxx) xxx.xxx@xxx’ -TargetName ‘GP_Subscription’

And then when it is selected, you can use the new name placed

Select-AzContext ‘GP_Subscription’

Here we go, now you can choose your default context and also how to rename your context. You can also save these contexts like this when I did a few steps back and then when needed just import the context directly.

Import-AzContext “C:\Users\Username\.azure\CHANGENAME-context.json”

That’s all for today folks, see you soon.

Joao Costa

Azure – Creating a basic environment using PowerShell

AzEnvironment_01

Hi folks,

In this article we will deploy a complete environment via PowerShell (Based on the latest series of articles). The intention with this series of articles was to assist you in the creation of each resource and then in an automated way, help in the delivery of projects or start projects with PowerShell.

Azure-Script

What’s in this script:

Resource Group;
Storage Account;
File Share;
Containers for Logs;
Network Creation;
Virtual Machine Creation;
Creation Network card;
Creation of the Network Security Group;

#Script:

$RGNAME= “RG_GETPRACTICAL”
$LOCATION= “WESTEUROPE”
New-AzResourceGroup -Name $RGNAME -Location $LOCATION -Tag @{Department=”IT”}

#Storage Account creation

$RGNAME= “RG_GETPRACTICAL”
$LOCATION= “WESTEUROPE”
$STRGACCNAME= “strggetpractical02”
$TypeSTRG= “Standard_LRS”
New-AzStorageAccount -ResourceGroupName $RGNAME -Name $STRGACCNAME -Type $TypeSTRG -Location $LOCATION

#Creating a Container for Logs via Powershell

$STORAGEACCOUNT = Get-AzStorageAccount -ResourceGroupName $RGNAME -Name $STRGACCNAME
$CONTAINERNAME = “logs”
$CTX = $storageAccount.Context

New-AzStorageContainer -Name $containerName -Context $ctx -Permission blob

#Creating a FileShare

$STORAGEACCOUNT = Get-AzStorageAccount -ResourceGroupName “RG_GETPRACTICAL” -Name $STRGACCNAME
$storageKey = (Get-AzStorageAccountKey -ResourceGroupName $storageAccount.ResourceGroupName -Name $storageAccount.StorageAccountName | select -first 1).Value
$storageContext = New-AzStorageContext -StorageAccountName $storageAccount.StorageAccountName -StorageAccountKey $storageKey
New-AzStorageShare -Name “getpracticalshare” -Context $storageContext

#Creating a Virtual Network

$RGName= “RG_GETPRACTICAL”
$LOCATION= “WESTEUROPE”
$NameVnet=”VNet-GETPRACTICAL”
New-AzVirtualNetwork -Name $NameVnet -ResourceGroupName $RGName -Location $location -AddressPrefix 172.16.1.0/24
$VirtualNetwork = Get-AzVirtualNetwork -Name $NameVnet -ResourceGroupName $rgName
Add-AzVirtualNetworkSubnetConfig -Name BackEnd -VirtualNetwork $VirtualNetwork -AddressPrefix 172.16.1.0/26
Add-AzVirtualNetworkSubnetConfig -Name FrontEnd -VirtualNetwork $VirtualNetwork -AddressPrefix 172.16.1.64/26
Add-AzVirtualNetworkSubnetConfig -Name DMZ -VirtualNetwork $VirtualNetwork -AddressPrefix 172.16.1.128/28
Add-AzVirtualNetworkSubnetConfig -Name GatewaySubnet -VirtualNetwork $VirtualNetwork -AddressPrefix 172.16.1.144/28
Set-AzVirtualNetwork -VirtualNetwork $VirtualNetwork

#Creating the Virtual Machine

# Set values for existing resource group and storage account names.

$RGNAME= “RG_GETPRACTICAL”
$LOCATION= “WESTEUROPE”
$NSGName=”NSG-VM-01″

#Get VM credentials

#$CRED=Get-Credential -Message “Enter the local administrator account name and password.”

$VMLocalAdminUser = “jcosta
$VMLocalAdminSecurePassword = ConvertTo-SecureString “GPractical@2022” -AsPlainText -Force
$CRED=New-Object System.Management.Automation.PSCredential ($VMLocalAdminUser, $VMLocalAdminSecurePassword);

#Set the existing virtual subnet and network index.

$VNETNAME=”VNet-GETPRACTICAL”
$subnetIndex=0
$VNET=Get-AzVirtualNetwork -Name $VNETName -ResourceGroupName $RGName

#Creating a NIC with Pulic IP.

$NIC1=”NIC1-GP-VM-01″
$PIP=New-AzPublicIpAddress -Name $NIC1 -ResourceGroupName $RGName -Location $LOCATION -AllocationMethod Dynamic
$NIC=New-AzNetworkInterface -Name $NIC1 -ResourceGroupName $RGName -Location $LOCATION -SubnetId $vnet.Subnets[$subnetIndex].Id -PublicIpAddressId $PIP.Id

# Creating a NIC without Pulic IP

$NIC2=”NIC2-GP-VM-01″
$VNET=Get-AzVirtualNetworkSubnetConfig -Name Backend -VirtualNetwork $VNET
$NIC=New-AzNetworkInterface -Name $NIC2 -ResourceGroupName $RGName -Location $LOCATION -SubnetId $VNET.Id
$PIP.Id

#Setting NSG Rules

$RULES=New-AzNetworkSecurityRuleConfig -Name ‘Allow-RDP’ -Direction Inbound -Priority 1000 -Access Allow -SourceAddressPrefix ‘*’ -SourcePortRange ‘*’ -DestinationAddressPrefix ‘*’ -DestinationPortRange 3389 -Protocol Tcp
$NSG=New-AzNetworkSecurityGroup -Name $NSGName -ResourceGroupName $RGName -Location $LOCATION -SecurityRules $RULES

# VM Name and Size

$VMName=”GP-VM-01″

$VMSize=”Standard_DS2_v2″
$VM=New-AzVMConfig -VMName $VMName -VMSize $VMSize

#Specify the image and local administrator account and then add the NIC.

$PUBName=”MicrosoftWindowsServer”
$OFFERName=”WindowsServer”
$SKUName=”2019-Datacenter”
$VM=Set-AzVMOperatingSystem -VM $VM -Windows -ComputerName $VMName -Credential $CRED -ProvisionVMAgent -EnableAutoUpdate
$VM=Set-AzVMSourceImage -VM $VM -PublisherName $PUBName -Offer $OFFERName -Skus $SKUName -Version “latest”
$VM=Add-AzVMNetworkInterface -VM $VM -Id $NIC.Id

#Specify the OS disk name and create the VM

$DISKName=”OSDisk”
$STORAGEACCOUNT=Get-AzStorageAccount -ResourceGroupName $RGNAME -Name $STRGACCNAME
$OSDiskUri=$STORAGEACCOUNT.PrimaryEndpoints.Blob.ToString() + “vhds/” + $VMName + $DISKName + “.vhd”
$VM=Set-AzVMOSDisk -VM $VM -Name $DISKName -VhdUri $OSDiskUri -CreateOption fromImage
New-AzVM -ResourceGroupName $RGName -Location $LOCATION -VM $VM

#EndoftheScript

That’s all for today folks, see you soon.

Joao Paulo Costa

Creating Network Security Group using PowerShell

NSG_01

Hi folks!

Today let’s create the network security group that has a very important role within Microsoft Azure. It works at layer 4, where we can communicate ports and IPs between internal or external networks through a VPN.

Now let’s assign the following variables:

$NSGName=”NSG-VM-01″
$RGName= “RG_GETPRACTICAL”
$LOCATION= “UKSOUTH”

NSG_02

Next, we will create a variable with the name of the port and which rule will be used. In this case, I am creating an “NSG” for RDP access.

$RULES = New-AzNetworkSecurityRuleConfig -Name ‘Default-Allow-RDP’ -Direction Inbound -Priority 1000 -Access Allow -SourceAddressPrefix ‘*’  -SourcePortRange ‘*’ -DestinationAddressPrefix ‘*’ -DestinationPortRange 3389 -Protocol TCP

NSG_03

Now let’s create the NSG, using the following command.

$NSG = New-AzNetworkSecurityGroup -Name $NSGName -ResourceGroupName $RGName -Location $LOCATION -SecurityRules $RULES

NSG_04

Your NSG was successfully created.

NSG_05

Thanks guys and until the next post, where I will demonstrate how to create a virtual machine using all these commands at once.

Joao Paulo Costa

Creating Network Interface using PowerShell

NIC_01

Hey folks,

Continuing our series of articles on how to create resources in Azure using PowerShell, let’s talk about creating the network interface using PowerShell, creating the network interface and assigning it to a VM and associating it to a VNET is easier via shell command.

Now let’s assign some variables to create the network interface.

$RGName= “RG_GETPRACTICAL”
$NIC1=”Nic-GP-VM-01″
$LOCATION= “UKSouth”
$VNETNAME=”VNet-GETPRACTICAL”
$subnetIndex=0

NIC_02

This “SubnetIndex” variable is very important in the creation process, as it will identify each of your VNETs within your environment. In the case of this article I have a single VNET so I am considering the value “0”, but if you need to pull this value, just run a “Get-AzVirtualNetwork” with the add-ons such as resource group and VNET name.

Now let’s validate if the network exists within the environment.

$VNET=Get-AzVirtualNetwork -Name $VNETName -ResourceGroupName $RGName

NIC_03

Next we will create a public IP for the network interface.

$PIP=New-AzPublicIpAddress -Name $NIC1 -ResourceGroupName $RGName -Location $LOCATION -AllocationMethod Dynamic

NIC_04

Finally, we will create the network interface associating the public IP and the VNET that exists within our environment.

$NIC=New-AzNetworkInterface -Name $NIC1 -ResourceGroupName $RGName -Location $LOCATION -SubnetId $vnet.Subnets[$subnetIndex].Id -PublicIpAddressId $PIP.Id

NIC_05

Your network interface has now been successfully created.

NIC_06

Thanks guys and until the next post!

Joao Paulo Costa

Creating Virtual Network using PowerShell

Vnet_01

Continuing from the last article, today we are going to create a virtual network to allocate Azure resources and leave it in a secure pattern. In this scope, I’m setting up the network with the segmented subnets:

  • BackEnd: 172.16.1.0/26
  • FrontEnd: 172.16.1.64/26
  • DMZ: 172.16.1.128/28
  • Gateway: 172.16.1.144/28

Before starting to create the Azure network structure, let’s understand how a network in Azure works.

In Azure, when we create a network, we first choose the “Address Space” that would be an IP block that we would use inside our virtual network and within this block we will consider that each “Subnet” will be a piece of this block, according to the drawing below.

Vnet_02

After logging into the “Cloud Shell” select PowerShell, let’s assign some variables to create the network.

$RGName= “RG_GETPRACTICAL”
$LOCATION= “UKSOUTH”
$NameVnet=”VNet-GETPRACTICAL

These variables are for choosing the resource group where we will provision, the location and the name of your virtual network.

Vnet_03

Now let’s assign the network settings pointing the “Address Block”, in this case the Address Space 172.16.1.0/24 with 256 hots.

New-AzVirtualNetwork -Name $NameVnet -ResourceGroupName $RGName -Location $location -AddressPrefix 172.16.1.0/24

Vnet_04

See that it has been provisioned but does not contain subnets. now let’s assign some variables. This variable is to validate if the network exists within the environment.

$VirtualNetwork = Get-AzVirtualNetwork -Name $NameVnet -ResourceGroupName $rgName

Vnet_05

After validating the existing network, let’s add the subnets as shown in the examples below.

Add-AzVirtualNetworkSubnetConfig -Name BackEnd -VirtualNetwork $VirtualNetwork -AddressPrefix 172.16.1.0/26

Vnet_06

Next, let’s add the rest of the network scope.

Add-AzVirtualNetworkSubnetConfig -Name FrontEnd -VirtualNetwork $VirtualNetwork -AddressPrefix 172.16.1.64/26
Add-AzVirtualNetworkSubnetConfig -Name DMZ -VirtualNetwork $VirtualNetwork -AddressPrefix 172.16.1.128/28
Add-AzVirtualNetworkSubnetConfig -Name GatewaySubnet -VirtualNetwork $VirtualNetwork -AddressPrefix 172.16.1.144/28

Vnet_07

Now let’s run the “Set” command to add the set of subnets that were assigned above.

Set-AzVirtualNetwork -VirtualNetwork $VirtualNetwork

Vnet_08

Once your virtual network has been successfully created with its segmented subnets, let’s go to the portal to validate it.

Vnet_09

That’s all for today folks, until the next post.

Joao Costa

Creating a Storage Account using PowerShell

cloud-file

Hey everyone,

Today we are going to create a Storage Account for any kind of use and inside this storage account we are going to create a blob for logs and a file share.

In the last post we created a resource group, where we will provision resources during this and the next posts.

Open the Azure Cloud Shell, then choose your subscription, if the cloud shell is already open, we will add the following variables, with the information:

$RGNAME= “RG_GETPRACTICAL”
$LOCATION= “UKSOUTH”
$STRGACCNAME= “strggetpractical01”
$TypeSTRG= “Standard_LRS”

STRG_01

Then we will execute the command “New-AZStorageAccount” to create the storage from the variables assigned above.

New-AzStorageAccount -ResourceGroupName $RGNAME -Name $STRGACCNAME -Type $TypeSTRG -Location $LOCATION

STRG_02

The storage was successfully created.

With the storage created, we are going to create a container to allocate the “Logs” of our environment, for that we are going to assign some variables as well.

$STORAGEACCOUNT = Get-AzStorageAccount -ResourceGroupName $RGNAME -Name $STRGACCNAME
$CONTAINERNAME = “logs”
$CTX = $storageAccount.Context

STRG_03

After assigning the variables, let’s run the following command “New-AzStorageContainer” to create the container.

New-AzStorageContainer -Name $containerName -Context $ctx -Permission blob

STRG_04

Your container was successfully created.

Last but not least let’s create a “File Share” with the following variables.

$STORAGEACCOUNT = Get-AzStorageAccount -ResourceGroupName “RG_GETPRACTICAL” -Name “strggetpractical01”

$storageKey = (Get-AzStorageAccountKey -ResourceGroupName $storageAccount.ResourceGroupName -Name $storageAccount.StorageAccountName | select -first 1).Value

$storageContext = New-AzStorageContext -StorageAccountName $storageAccount.StorageAccountName -StorageAccountKey $storageKey

STRG_05

New-AzureStorageShare -Name “getpracticalshare” -Context $storageContext

STRG_06

The File Share was created successfully, now let’s check the container and the file share that were created.

Container for Logs:

STRG_07

File Share for files:

STRG_08

That’s all for today guys, until the next post!

Joao Costa

How to authenticate AzCopy on Azure

AzCopy should now be downloaded to your computer (If you don’t know how to do this, go back to the last post here). But before you can perform any tasks, it is necessary to authenticate to your Azure subscription to access Azure Storage first.

There are two ways to authenticate AzCopy to your Azure storage accounts – Azure Active Directory or by a Shared Access Signature (SAS) token. In this article, we’ll focus on using Azure AD.

The most common method to authenticate AzCopy is via Azure AD. When using Azure AD, you have several options. Some of these options are:

  • Interactive Login – User is prompted to log in using the browser.
  • Service Principal + password – For non-interactive login. Recommended for automation and scripting.
  • Service Principal + certificate – For non-interactive login. Recommended for automation and scripting.

In this article, you will learn how to authenticate via interactive login. To do so, first, open a command prompt or PowerShell and run the below command. The –tenant-id parameter is optional but recommended, especially if your login account is associated with more than one Azure tenant.


Once executed, you will be asked to open a browser and navigate to https://microsoft.com/devicelogin and enter the displayed code. You can see what that will look like below.

05Enter the code from AzCopy into the browser

Once you’ve entered the code into the browser, click Next and proceed to sign in to your account.

03

When sign-in is done, you should see the status shown in the browser and in the terminal similar to what’s shown in the screenshot below.

04

Now that you have all this knowledge, you should now be ready to put AzCopy in action! See you soon folks!

How to connect to Azure from PowerShell

Today I will talk about how to use PowerShell. I know that there is already integrated access to the browser directly through the Azure portal, but the idea of this post is to show how to access it as in the old days and mainly to help those who do not know where to start.

Well, let’s get started! If you have not yet installed the PowerShell module, I will demonstrate here how to do this, basically, you will need to open PowerShell as Administrator (Right-click and select “Run as administrator”), then execute the following command (Copy and Paste it):

If you want the module to be available only to the user performing the procedure on this workstation, choose command 1, if not, you want the module to be available to all users of this workstation, choose command 2.

1 – Install for Current User

if ($PSVersionTable.PSEdition -eq 'Desktop' -and (Get-Module -Name AzureRM -ListAvailable)) {
Write-Warning -Message ('Az module not installed. Having both the AzureRM and ' +
'Az modules installed at the same time is not supported.')
} else {
Install-Module -Name Az -AllowClobber -Scope CurrentUser
}

2 – Install for All Users
if ($PSVersionTable.PSEdition -eq 'Desktop' -and (Get-Module -Name AzureRM -ListAvailable)) {
    Write-Warning -Message ('Az module not installed. Having both the AzureRM and ' +
      'Az modules installed at the same time is not supported.')
} else {
    Install-Module -Name Az -AllowClobber -Scope AllUsers
}

If you try to understand the commands, you will see that only the parameter –Scope is changed. My learning tip here is, always try to understand the command that is being executed, this will help you to become familiar with Cmdlets (CmdLets is the name given to the commands used in PowerShell).


If you want to understand more about the subject, here are some links that will help you learn.

  • Introducing the Azure Az PowerShell module

From now on I am assuming you have already installed the Az Module and using PowerShell. Here is the simple command for your reference. The below command will connect to your Azure Account and it will connect to the default subscription.

Import-Moduloe –Name Az

Connect-AzAccount

AzAccountConnected

And if you have different subscriptions you have to set the default subscription with the below command.

Set-AzContext ‘YOUR_SUBSCRIPTION_NAME’

To Discover or list all the Az Module

Get-Module Az.* -ListAvailable | Select-Object Name -Unique

To discover the available cmdlets within a module we can use the Get-Command cmdlet. In this example, we browse all cmdlets within the Az.Account module:

Get-Command -Module Az.Accounts

You can use the Get-Help command to get help with any specific command

Get-Help Get-AzVM


If want to see a few examples against this command you can use this.

Get-Help Get-AzVM –Examples


That and everything for today. If you have any questions, leave them in the comments or contact us, it will be a pleasure to answer them Smile.
