Today I’m going to talk about Azure Arc. This is a very useful tool nowadays, after all we have to work with more complex and heterogeneous environments. Therefore, the idea of being able to manage an entire infrastructure from a single access point saves many hours of work.
Well then, that is the role of Azure Arc. In it you can add Azure or non-azure resources, that is, other resources from other public clouds, on-premises, databases, etc.
Again, this is an intuitive and practical resource to use, let’s get right to the practice again.

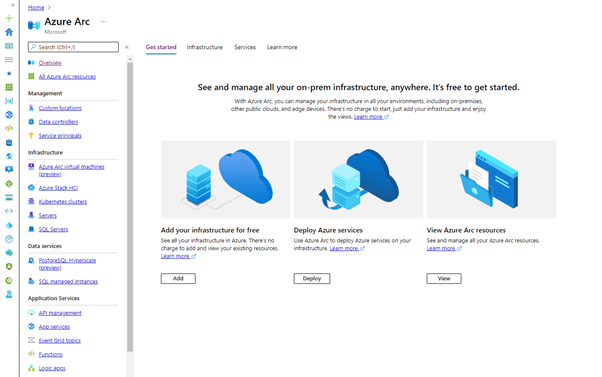

Log in with your Azure account on the portal and type in the search bar “Azure Arc”. Open Azure Arc and you should see the Azure Arc Center.
On the home screen you have three tiles options, such as: Add your infrastructure for free, Deploy Azure Services and View Azure Arc Resources.

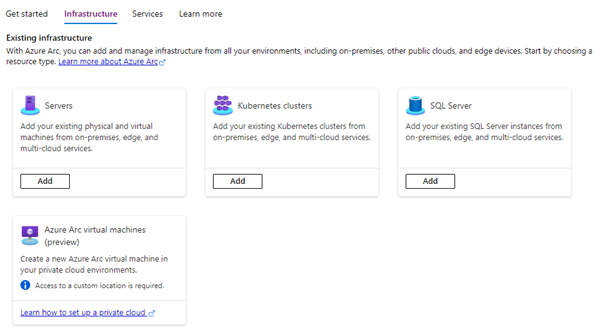

For this demo, we will use the first tile, so in “Add your infrastructure for free” click Add and then on the next screen, in the Servers tile click Add again.

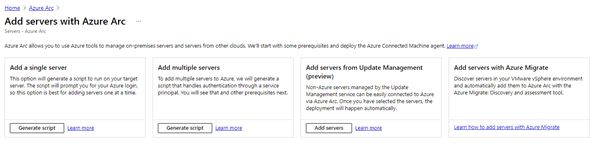

On the next screen you can choose if you want to add one or more servers, add servers using Azure Migrate or Update Management (Still in preview).
In the tile add a single server, click Generate Script.
From now on I believe you already understand what will happen, Azure will open a wizard that will help you configure and generate a script that will do everything for you, such as downloading the agent, installing the agent and registering the server in Azure. You will only need to run the script on the server you intend to add to Azure Arc.

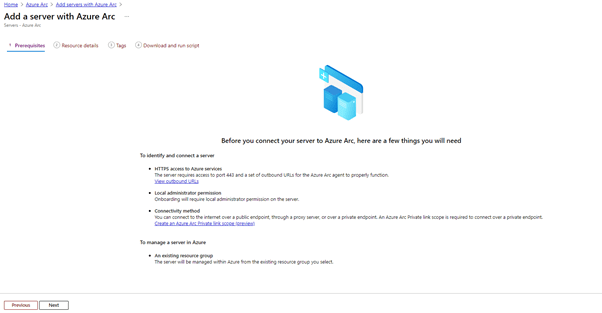

After clicking on Generate Script, you will see the following screen:
On this screen, you will need to pay attention to the basic requirements for the script to work.
- Firewall requirements, you will need port 443 to perform this task.
- You will need permission as a local administrator on the server or servers.
- Finally, what is the means of communication between Azure and machine, public internet, proxy server or a private endpoint (VPN or Express Route).

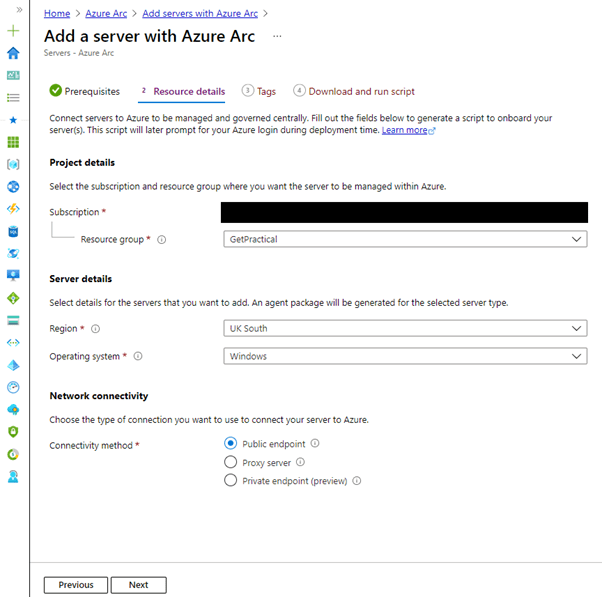

Click next and select the options according to your environment.

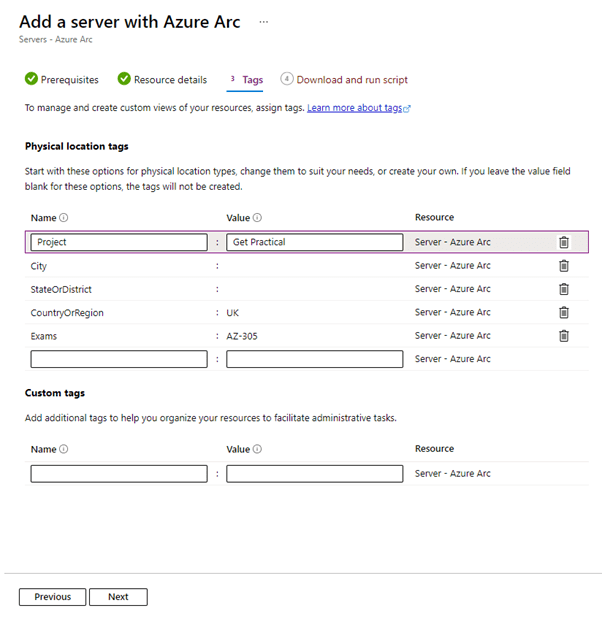

Click on next and if that’s the case you can add tags to better identify your environment. Or just skip to the next screen.
Or just skip to the next screen.

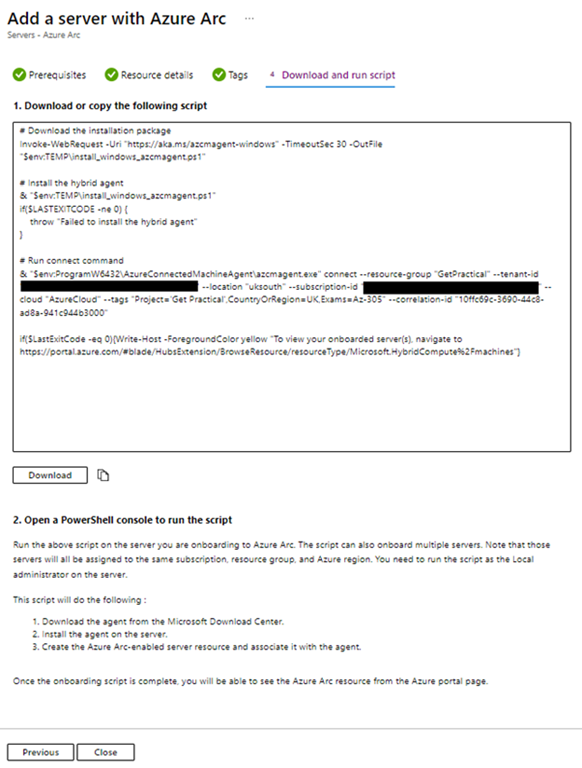

Now you need to copy or download the script and run it on the intended server.
And as soon as you run the script on the desired server, it will show up in Azure Arc as Connected status.
That’s all for today guys, until the next post.
