Cisco CUCM – MRA (Mobile and Remote Access) – Overview

Hey guys,

Today I’m going to talk about a very useful solution, part of the Cisco Collaboration Edge Architecture: MRA.
This post is going to be the first part, to cover the concepts, requirements and compatibilities.

Basically, MRA (Cisco Unified Communications Mobile and Remote Access) allows endpoints such as Cisco Jabber to have their registration, call control, provisioning, messaging and presence services provided by CUCM when the endpoint is outside the enterprise network. The Expressway provides secure firewall traversal and line-side support for Unified CM registrations.

This solution supports a hybrid on-premises and cloud-based service model. It provides a secure connection for Jabber application traffic and other devices with the required capabilities to communicate without having to connect to a VPN. It is a device and operating system agnostic solution for Cisco Jabber clients on Windows, Mac, iOS and Android platforms.

MRA allows Jabber clients that are outside the enterprise to do the following:

  • Use Instant Messaging and Presence services
  • Make voice and video calls
  • Search the corporate directory
  • Share content
  • Launch a web conference
  • Access visual voicemail

Components

MRA requires Expressway (Expressway-C and Expressway-E) and Unified CM, with MRA-compatible soft clients and/or fixed endpoints. The solution can optionally include the IM and Presence Service and Unity Connection.

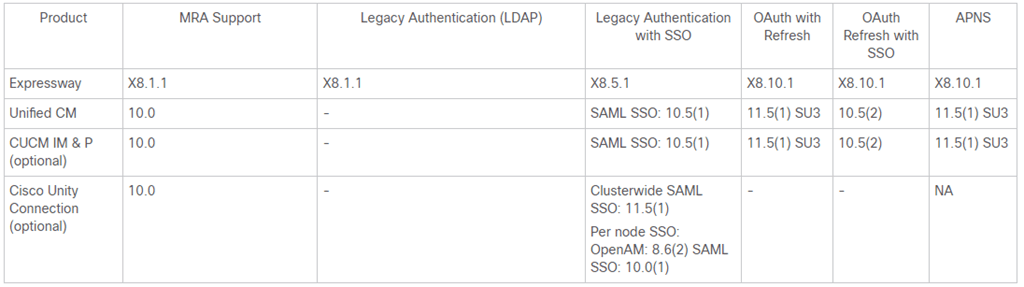

Product Versions

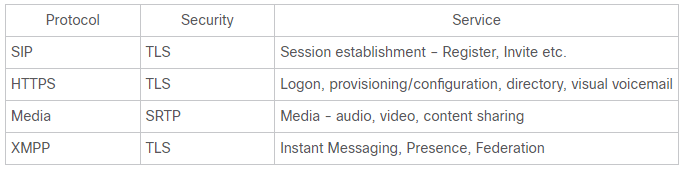

Protocols

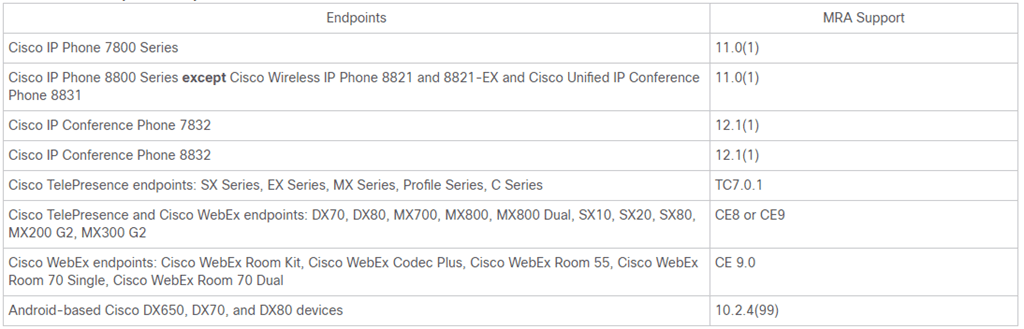

Compatible Endpoints


If you are deploying any of these devices to register with Cisco Unified Communications Manager through MRA, be aware of the following points. For DX endpoints, these considerations only apply to Android-based devices and do not apply to DX70 or DX80 devices running CE software:

  • Trust list: You cannot modify the root CA trust list on Cisco IP Phone 7800 Series and Cisco IP Phone 8800 Series devices. Make sure that the Expressway-E’s server certificate is signed by one of the CAs that the devices trust, and that the CA is trusted by the Expressway-C and the Expressway-E.

  • Off-hook dialling: The way KPML dialling works between these devices and Unified CM means that you need Cisco Unified Communications Manager 10.5(2)SU2 or later to be able to do off-hook dialling via MRA. You can work around this dependency by using on-hook dialling.

Cisco CUCM Requirements

CUCM dial plan will not be impacted by devices registering via Expressway. Remote and mobile devices still register directly to Unified CM and their dial plan will be the same as when it is registered locally.

Unified CM nodes and Expressway peers can be located in different domains. For example, your Unified CM nodes may be in the enterprise.com domain and your Expressway system may be in the edge.com domain.

In this case, Unified CM nodes must use IP addresses or FQDNs for the Server host name / IP address to ensure that Expressway can route traffic to the relevant Unified CM nodes.

Unified CM servers and IM and Presence Service servers must share the same domain.

  • Certificates

Two certificates on CUCM are significant for Mobile and Remote Access: CallManager certificate and Tomcat certificate.
PS:
If you do use self-signed certificates, the two certificates must have different common names. The Expressway does not allow two self-signed certificates with the same CN. So if the CallManager and tomcat self-signed certificates have the same CN in the Expressway’s trusted CA list, the Expressway can only trust one of them. This means that either secure HTTP or secure SIP, between Expressway-C and Cisco Unified Communications Manager, will fail.

The Expressway certificate signing request (CSR) tool prompts for and incorporates the relevant Subject Alternative Name (SAN) entries as appropriate for the Unified Communications features that are supported on that Expressway.

The Expressway-C server certificate must include the following elements in its list of subject alternate names: Unified CM phone security profile names and
IM and Presence chat node aliases (federated group chat)

The Expressway-E server certificate needs to include the following elements in its list of subject alternative names (SAN): Unified CM registrations domains, XMPP federation domains and IM and Presence chat node aliases (federated group chat)

That’s it for today guys….just an overview.
In the next posts, I’m going to go a bit deeper in the configuration.

Hope you’ve enjoyed!

See ya!

Bruno
