Cisco CUCM – Controlling Phones Remotely

Hey guys,

Today I’m going to talk about a very useful feature which gives us power to control remotely a Deskphone, and even make calls from it.


First things first, you will need to install an extension to your Browser, to be able to control the phones.

If you are using Google Chrome, download the extension HERE.
If you are using Mozilla Firefox, download the extension HERE.

CUCM Configuration

With the Browser extension installed, let’s check now what do we need to do on CUCM.
It’s pretty easy!

  • Phone Web Access
    Make sure the deskphone is enabled for Web Access. Go to the Device’s Page, scroll down till you see the Web Access option. It must be Enable.


  • NEW End User
    We could use any End User for that. But, as I’m centralize all requests in one user, I decided to create a new one only for that.

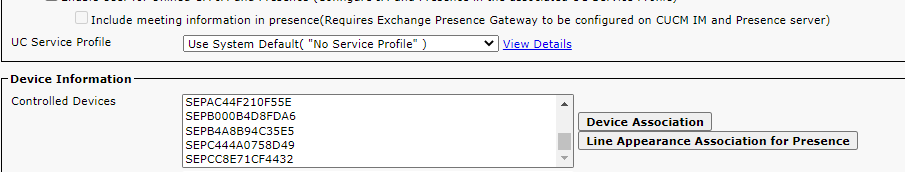

    Each phone you want to control, you have to associate to that End User.

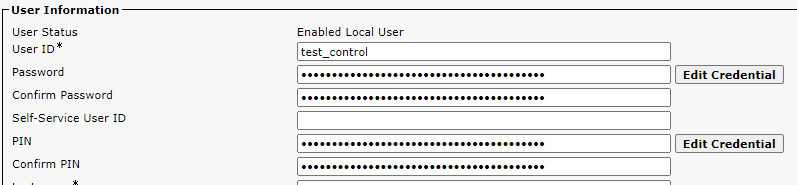

    So, create a new user, associate as many phones as you want to Control, and add a Rule you have in your CUCM which gives them ability to control the phones.


  • Remote Control
    After installing the Browser extension, and configuring the Phone and End User, now it’s time to test the Remote Control.

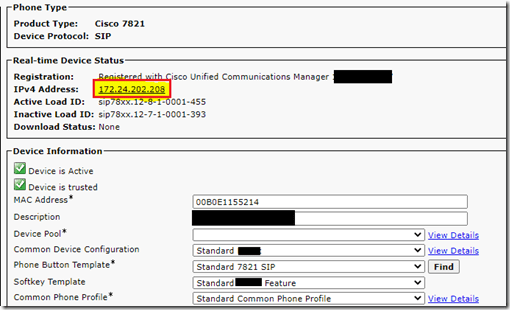

    Go to CUCM, find the Phone you want to access and get the IP Address (Phone must be registered)
    PS: If you are controlling a phone which is MRA registered, you will need to be able to route to its real IP Address


As soon as you click on the IP Address, to access the Phone’s information, you will notice now something different. The option Control Me will be displayed.

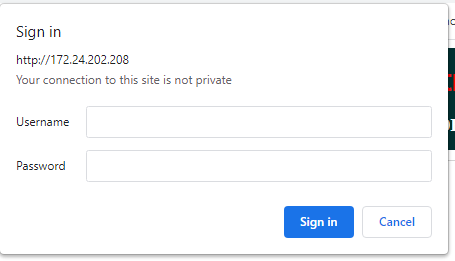

Then, you will be asked to enter the Username and Password, from the End User we created above.

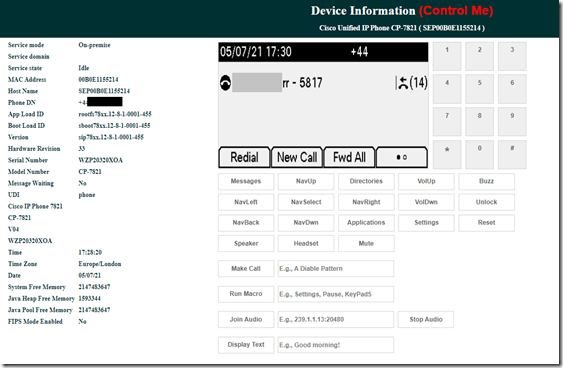

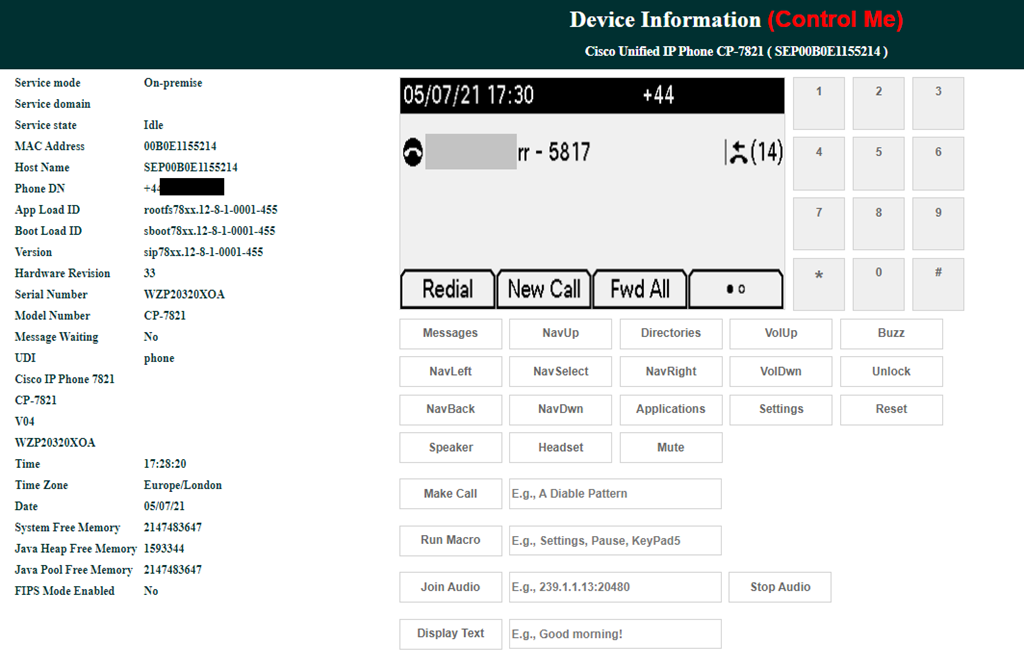

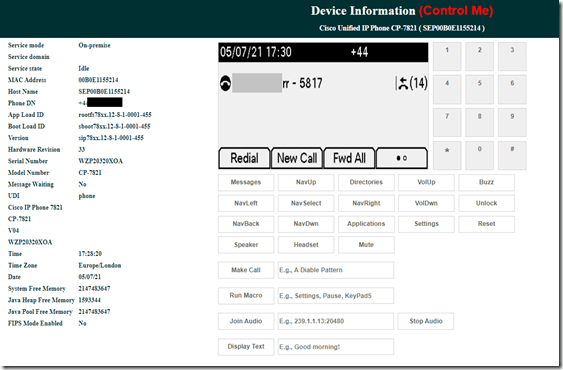

And now you have the Phone’s screen being displayed, with all available commands next to it.
From there, you can access the Settings, change configuration, and even Make calls…


Hope you enjoyed this quick, but useful and interesting Tip! Smile

See ya!!

Bruno

Cisco Unity Connection Provisioning Interface (CUPI) API

Hey people,

Coming back to the DEV topics, today I’m going to give you a quick overview of Unity API.
It’s very simple, but it will give different perspectives of what you can automate on Unity.

CUPI is a provisioning API for Cisco Unity Connection that has been designed to be stable and simple to use. It is based on leading industry standards for web-based API development, and provides access to the most commonly provisioned data on Connection systems (users, contacts, distribution lists, and call handlers).

By using CUPI, you can securely do the following:

  • Create, read, update, and delete users and user configurations
  • Reset passwords
  • Create, read, and update distribution lists
  • Create, read, update, and delete call handlers
  • Create, read, update, and delete contacts

Getting the Schema Details

All the schema details for all supported object types can be obtained by going to the REST schema page using the URL:
                                                          http://{server name}/vmrest/schema

In the case of users the schema shows what will come back when fetching the full user data using a URL like this:
                                                   http://{server name}/vmrest/users/{object_id}

Authentication

CUPI uses the same authentication and authorization scheme that the administration console uses. This means that the objects an administrator has access to when authenticated are determined by the roles to which the administrator is assigned.

Basic Operations

Searching For an user:
This request gives us all details about an specific user, searching it by the alias.

To search for a user account, do the following GET request:
GET http://<connection-server>/vmrest/users?query=(alias%20startswith%20ab)

You can have your results in XLM or JSON. It’s up to you. The only difference will be on how you manipulate that, to achieve your goal.
In XML, you will see this:


If you want to change, or create something new, you need to send a PUT or a POST request.
And, depending on your request, you have to search the user via user-objectID, instead of Alias. In this case, you have to send a request to get information from an user, save its ObjectID, and then use it in another request. See some samples below:

Listing User PIN Settings
Shows information about user’s PIN:

                           GET https://<Connection-server>/vmrest/users/<user-objectid>/credential/pin

The following is the response from the above *GET* request and the actual response will depend upon the information given by you:


Changing PIN
In this case, we are going to use PUT, and we also have to send the new PIN in the Body:

PUT https://<Connection-server>/vmrest/users/<user-objectid>/credential/pin
<Credential>
      <Credentials>ciscfo1234</Credentials>
</Credential>

This must be your response, indicating a success: Response Code: 204

Creating a User

To create a user account, do the following POST request:

POST http://<connection-server>/vmrest/users?templateAlias=voicemailusertemplate
<?xml version=”1.0″ encoding=”UTF-8″ standalone=”yes”?>
<User>
    <Alias>jdoe</Alias>
    <DtmfAccessId>7890</DtmfAccessId>
</User>

The following is the result of the above POST request: 201 Created

Modifying a User

To modify a user account, do the following PUT request:

PUT http://<connection-server>/vmrest/users/{objectid}

<?xml version=”1.0″ encoding=”UTF-8″ standalone=”yes”?>
<User>
<DisplayName>johnd</DisplayName>
</User>

The following is the result of the above PUT request: 204 Accepted

Deleting a User

To delete a user account, do the following DELETE request:

                                           DELETE http://<connection-server>/vmrest/users/{objectid}

The following is the result of the above DELETE request: 200 OK

These were only some samples of what you can do using CUPI. Of course, there are dozes, or hundreds of types of request.
Any specific request you want to do and don’t know how, let me know in the comments.

I hope you enjoy this post! Smile

See ya!

Bruno
